980 reviews analysed

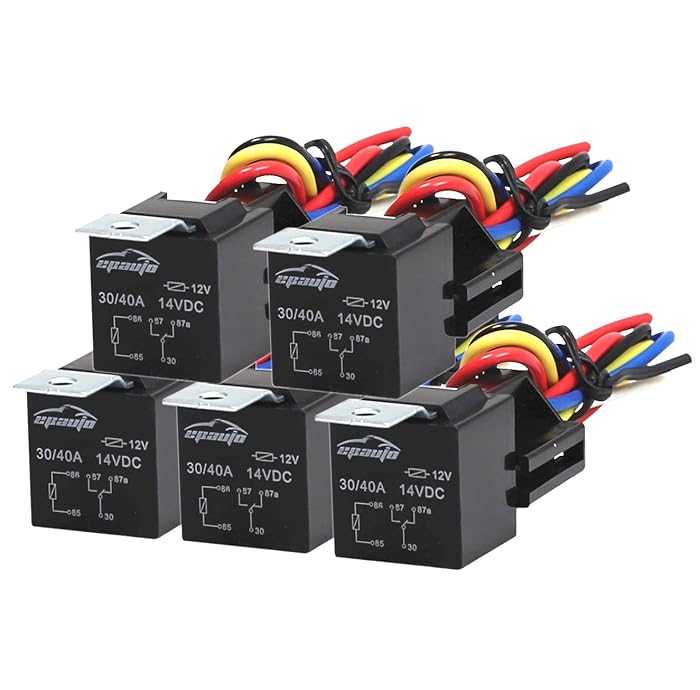

1. 5 Pack – EPAuto 30/40 AMP Relay Harness Spdt 12V, 5-PIN SPDT Bosch Style
2. Youngneer 5v Relay Board Raspberry Arduino Relay Module 1 Channel Opto-Isolated High or Low Level Trigger
Feature
- 【1 Channel Relay Module】- This Relay Board provides a single relay that can be controlled by any 5V digital output from your microcontroller.
- 【Main Specification】- Peak Load of NO Connector: AC125~250V/10A, DC28~30V/10A
- Trigger Current: 5mA
- 4pcs * 3.1 mm Fixed Bolt Hole
- 【Adopted SMD Optocoupler Isolation】- The isolation circuit prevent damages to I / O port by relay switch current.
- 【Wide Application】- These 5v relay board works well with Arduino/ ARM /PIC /AVR /MCU/Raspberry/CNC machine/ PS4 etc.
- 【Humanization Design On Interfaces】- All interfaces can be directly wired out through the terminals.
Description
Specification:
Material: Circuit board
Control signal: TTL
Rated load: AC125~250V/10A, DC28~30V/10A
Max. switch voltage: 250VAC, 30V
Trigger Voltage: 0-1.5V (LOW); 3-5V (High)
Trigger Current: 5mA
Max. Current: 190mA
Size: 50mm * 26mm * 18.5mm (1.9 inch *1.02 inch * 0.72 inch )
Input Connection:
DC +: Positive power supply (VCC)
DC-: Connect power negative ( GND)
IN: Control the pick up of replay by low level or high level
Output Connection:
Left Connection: “NO” means “Normally Open”
Middle Connection: “COM” means “Common”
Right Connection: “NC” means “Normally Closed”
High and Low Level Trigger Effective
High level trigger when the jumper cable connecting “High” to Short Circuit;
Low level trigger when the jumper cable connecting “Low” to Short Circuit;
LED Indicator Light:
Power Indicator: Green
Indicator of Relay Status: Red
100% Satisfaction Guarantee: 12-Month Warranty; No satisfied, Free reason for return; Quality problem, please contact us, we will resend your FREE Replacements or make you FULL Refund.
3. GOOACC 6 Pack Automotive Relay Harness Set 5-Pin 30/40A 12V SPDT with Interlocking Relay Socket and Harnesses,2 years Warranty
Feature
- HIGH SWITCHING CAPABILITY: 5-Pin SPDT (Single Pole Double Throw) 30/40 A Relay.
- INTERLOCKING RELAY SOCKET: The relay socket harness base is interlocking designed for easy cable management and organization.
- GREAT QUALITY: The durable relay and heavy duty relay socket with 5 wires are made by high-grade materials to ensure superior quality.
- WIRE INSTRUCTION: Black – (85), Red – (87a), White – (86), Yellow – (87) and Blue – (30).
- PACKAGE INCLUDE: 6 relays & 6 relay sockets with wires
4. Amrad TES5 Easy-Start 5 Hard Start Kit for Heat Pump – 1-5 ton
Feature
- Can be used in place of the “4” most commonly used Hard-Start kits
- Microfarad Coverage: Up to 1 ton – 108 to 130 mfds , 1 to 2 tons – 189 to 227 mfds , 2.5 to 3 tons – 233 to 280 mfds or 3.5 to 5 tons – 270 to 324 mfd
- High microfarad capacitor and potential relay are enclosed within a sealed aluminum housing protecting it from harsh environments
- Does NOT require a vent hole and will NEVER dry out
- For use with A/C , Heat Pump , HVAC and Refrigeration Compressors
- AmRad TES5 replacese the following aftermarket Hards Start Kits: TES4 , TES-4 , 5-2-1 Products , Rectorseal KS1 , Rectorseal TO5 , SPP5 , SPP6 , WSX5 , WSX6 , TradePro TO-5 , TradePro KS-1 , TurboStart , Turbo-Start , Turbo Start and many others
Description
Amrad’s TURBO EASY-START “4” for a smooth, fast boost of air conditioner and refrigeration compressors!
It can be used in over 90% of refrigeration and air conditioning applications…a suitable replacement for the following brands: AAON , AireFlo , American Standard , Amana , Arcoaire , Armstrong , Bard , Bryant , Carrier , Coleman , Comfortmaker , Corsaire , Daikin , Day & Night , Ducane , Evcon , GE , Gibson , Goodman , Heil , ICP , Intertherm , Janitrol , Keeprite , Kenmore , Lennox , Luxaire , Maytag , Nordyne , Payne , Philco , Rheem , Ruud , ServiceFirst and others.
AmRad TES4 replacese the following aftermarket Hards Start Kits: 5-2-1 Products , Rectorseal KS1 , Rectorseal TO5 , SPP5 , SPP6 , WSX5 , WSX6 , TradePro TO-5 , TradePro KS-1 and many others.
Need Help Identifying the Correct Component…Contact AirstarSupply!
5. Supco SUPR Universal Potential Relay, Single Phase, 110 – 270 Operating Voltage, 30 A Load Current
Description
This Supco SUPR universal potential relay is used to start 1-phase, capacitor-type motors in air conditioning and refrigeration applications. It is a replacement part with 110 to 270 VAC pickup voltage. It has a safety time-out of 1 to 1.5 sec, at which point the contacts will open if the motor does not start. It has universal, non-positional mounting and adapters for screw or push-on terminals. This adjustable potential relay replaces 3- and 5-terminal potential relays and is suitable for use with single phase motors or air conditioning and refrigeration compressors up to 5 hp.
| Specifications | |
|---|---|
| Operating voltage | 110-270 VAC |
| Load current | 30 amp |
| Time setting range | 0.05 – 100 sec |
| Operating temperature | -40 to +150 degrees F |
| Dimensions* | 1.5 x 2.25 x 1.75″ (H x W x D) |
*H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.
Relay switches (also called an electrical relay or an electrical relay switch) use a small amount of power to control a larger source of power connected to electrical devices such as car motors, computers, and lighting installations. A basic relay switch has a control circuit with an electromagnetic coil and a load circuit with contacts and a lever. When current flows into the relay switch, it moves through the coil and a magnetic field is created, which causes the lever in the load circuit to move between contacts, either turning the device on or off. In a normally open (NO) relay switch, when power is supplied to the relay, the load circuit is closed and the power source connected to the relay is turned on. In a normally closed (NC) relay switch, when power is supplied to the relay, the load circuit is open and the power source connected to the relay is turned off. In other types of relay switches, non-moving parts such as transistors or semiconductors can be used as the control circuit to operate the switching mechanism. Relay switches can be controlled with an external switch, such as a light switch, or they can be connected to an automatically switched power source, such as a car ignition. One relay can operate multiple switches, and multiple relays can be operated with a single switch, with each relay operating independently from the other relays in the system.
Supco manufactures test instruments and replacement parts for heating, ventilation, air conditioning, and refrigeration systems. The company, founded in 1945, is headquartered in Allenwood, NJ.
6. Supco SPP8E E Series Electronic Potential Relay style Hard Start Kit, Greater than 1 Horsepower Range, 189-227F Capacitor Size
Conclusion
By our suggestions above, we hope that you can found Potential Start Relay Ge 3Arr22y3p5 for you.Please don’t forget to share your experience by comment in this post. Thank you!
